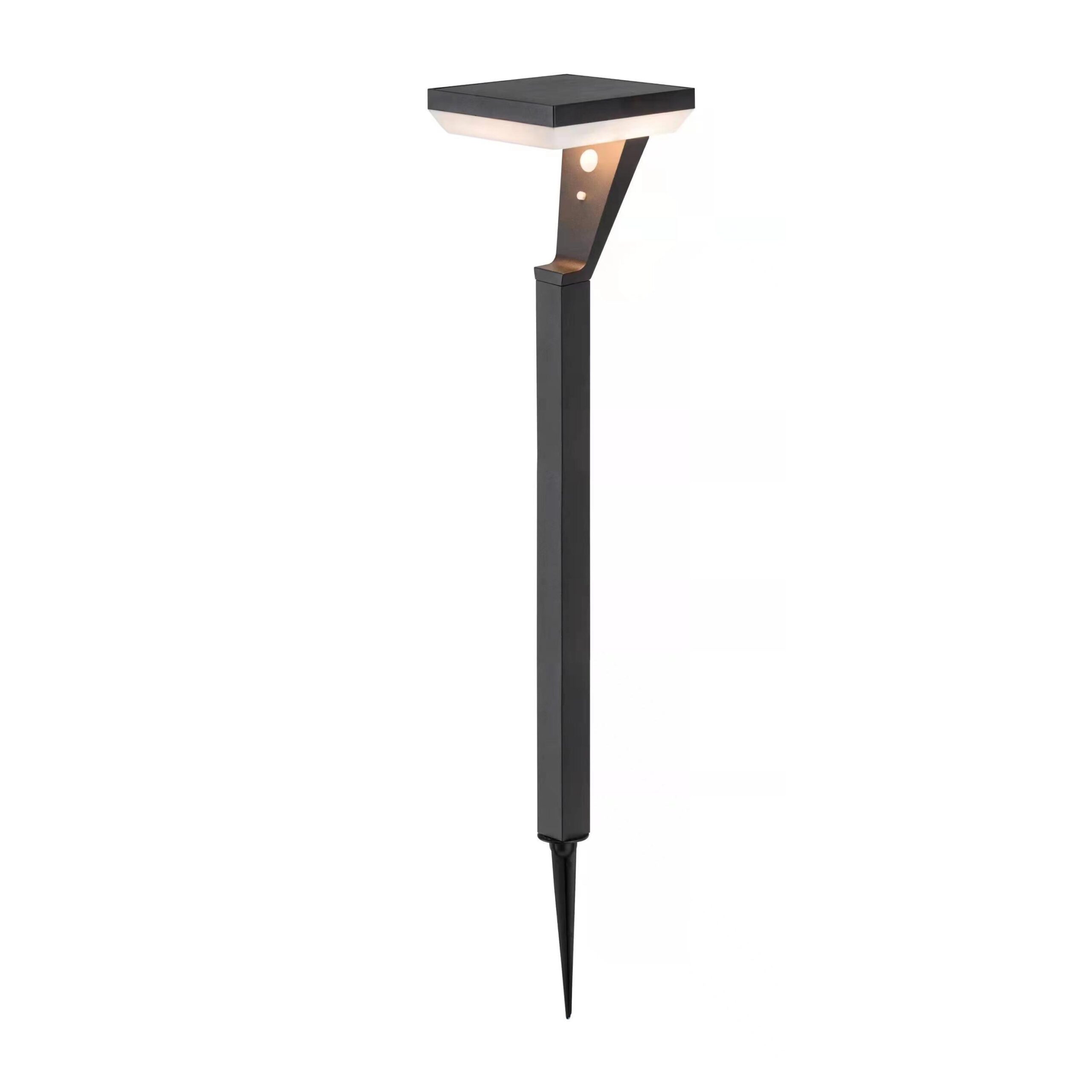

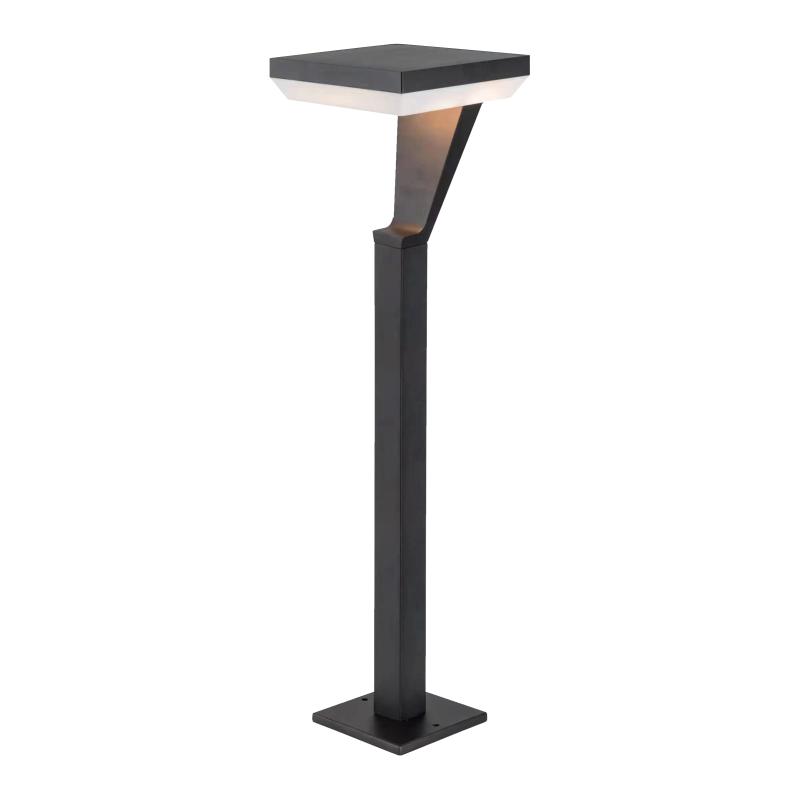

ARC Outdoor Square Garden Bollard

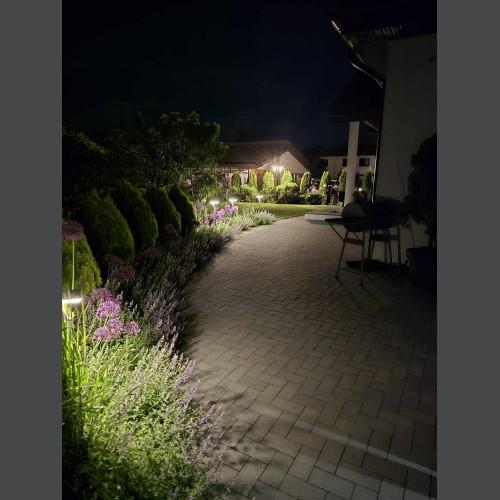

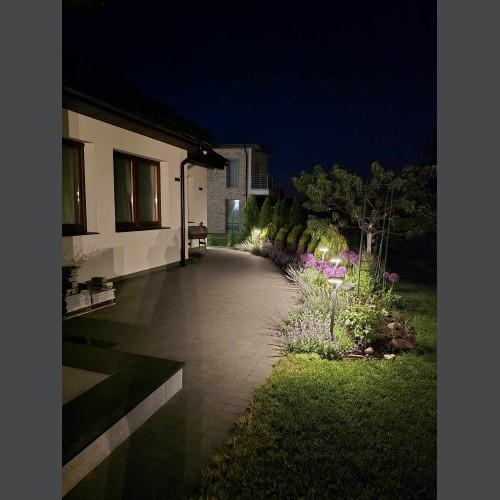

The Outdoor Square Garden Bollard, equipped with premium Sanan SMD LED chips, emits a warm and gentle, glare-free illumination ideal for pathway lighting. Its contemporary design ensures aesthetic enhancement both during daylight and nocturnal hours. A robust die-cast aluminium housing, finished with a black powder coating, provides exceptional durability for outdoor applications. The IP65 waterproof rating guarantees superior protection against heavy rainfall. Installation flexibility is maximised through surface mounted or spike options, and power options include solar and mains power.
Solar Sensor Bollard Instructions
By default, the first power-on remembers the last switch/shutdown status.
Press and hold the switch for 2 seconds to cycle between the following modes.
- The default mode is 90% of max brightness on presence detection and a drop to 10% on vacation of presence.
- The second mode is 90% of max brightness on presence detection and a drop to 25% on vacation of presence.
- The third mode is 100% of max brightness – presence detection is ignored.
Press and hold the switch for 2 seconds to turn off the light
Details on the graceful dimming for the third mode:
- 1-60 minutes on 100% brightness.
- 60-120 minutes gradually decreasing to 90% brightness.
- 120-180 minutes gradually decreasing to 80% brightness.
- 180-360 minutes gradually decreasing to 70% brightness.
- 360-600 minutes gradually decreasing to 10% brightness
- 10% brightness until dawn or when the photovoltaic panel reaches the turn-off voltage
